High-Performance Industrial Metal Filter Cartridges
Precision-Engineered for Long-Term Reliability and Maximum Flow Efficiency
Our Industrial Metal Filter Cartridges are designed for critical filtration applications where standard mesh or disposable filters fail. Utilizing advanced Wedge Wire (Johnson Type) technology and perforated support structures, these cartridges provide a permanent, high-strength solution for liquid and gas filtration in the most demanding environments.
Technical Highlights & Performance Advantages
- Permanent & Cleanable Solution: Unlike disposable media, our all-welded stainless steel cartridges are fully reusable. They are designed for repeated cleaning and backwashing, significantly reducing operational costs and environmental waste.

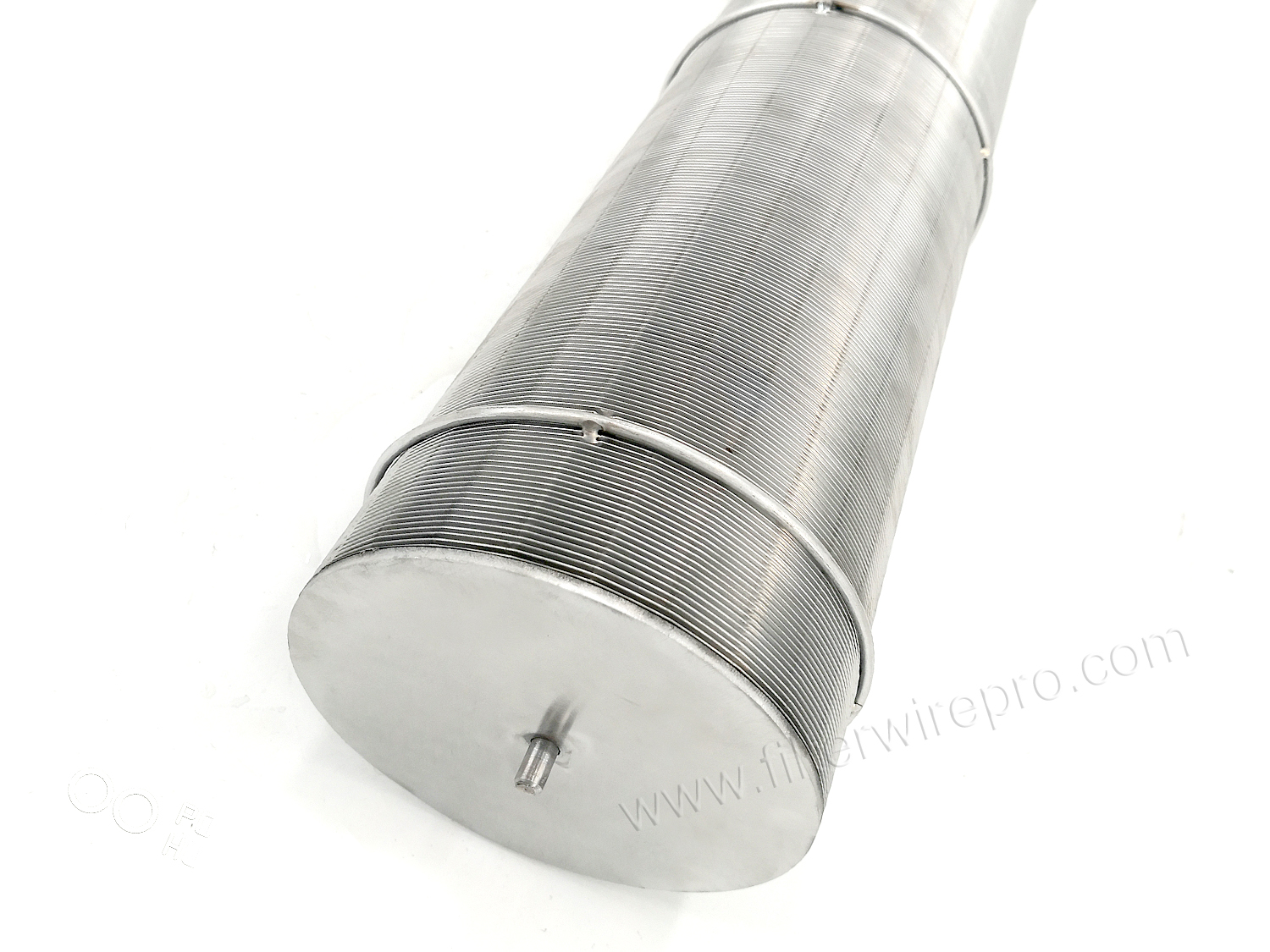

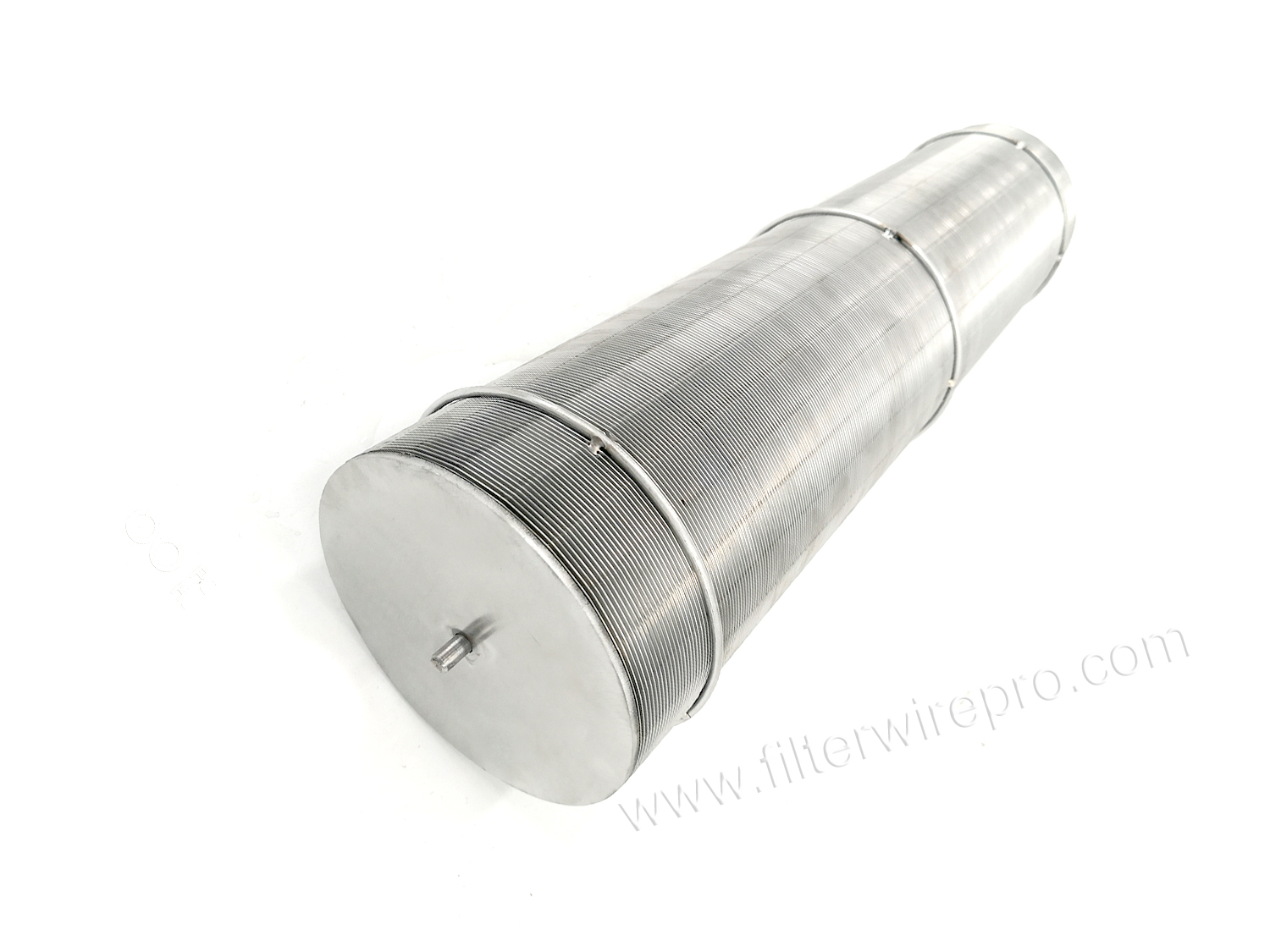

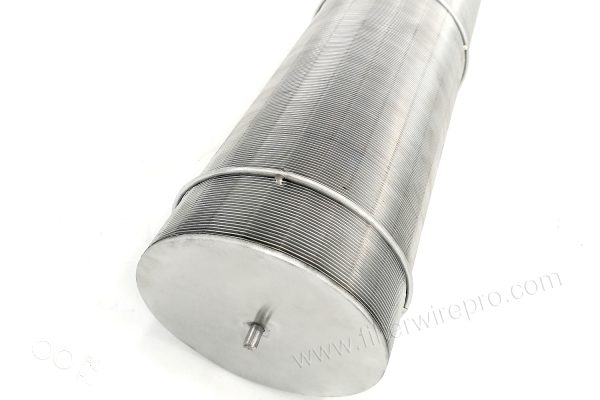

- Superior Structural Integrity: Every cartridge is engineered with a heavy-duty frame, often including external reinforcing rings and robust internal support rods. This allows the element to withstand high differential pressures and mechanical shocks without deforming.

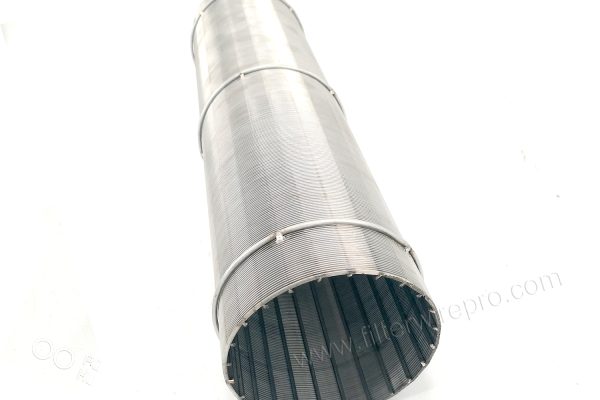

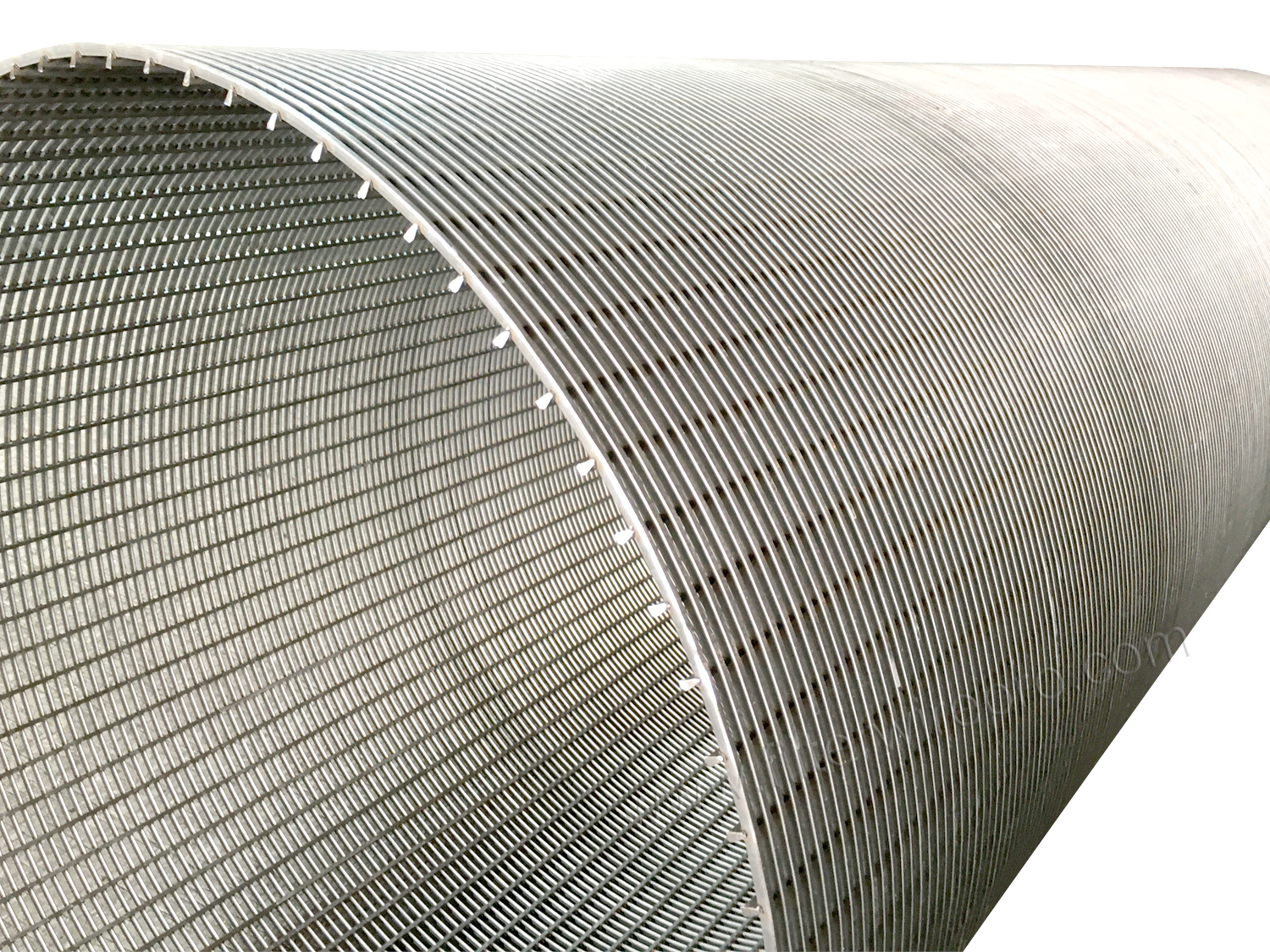

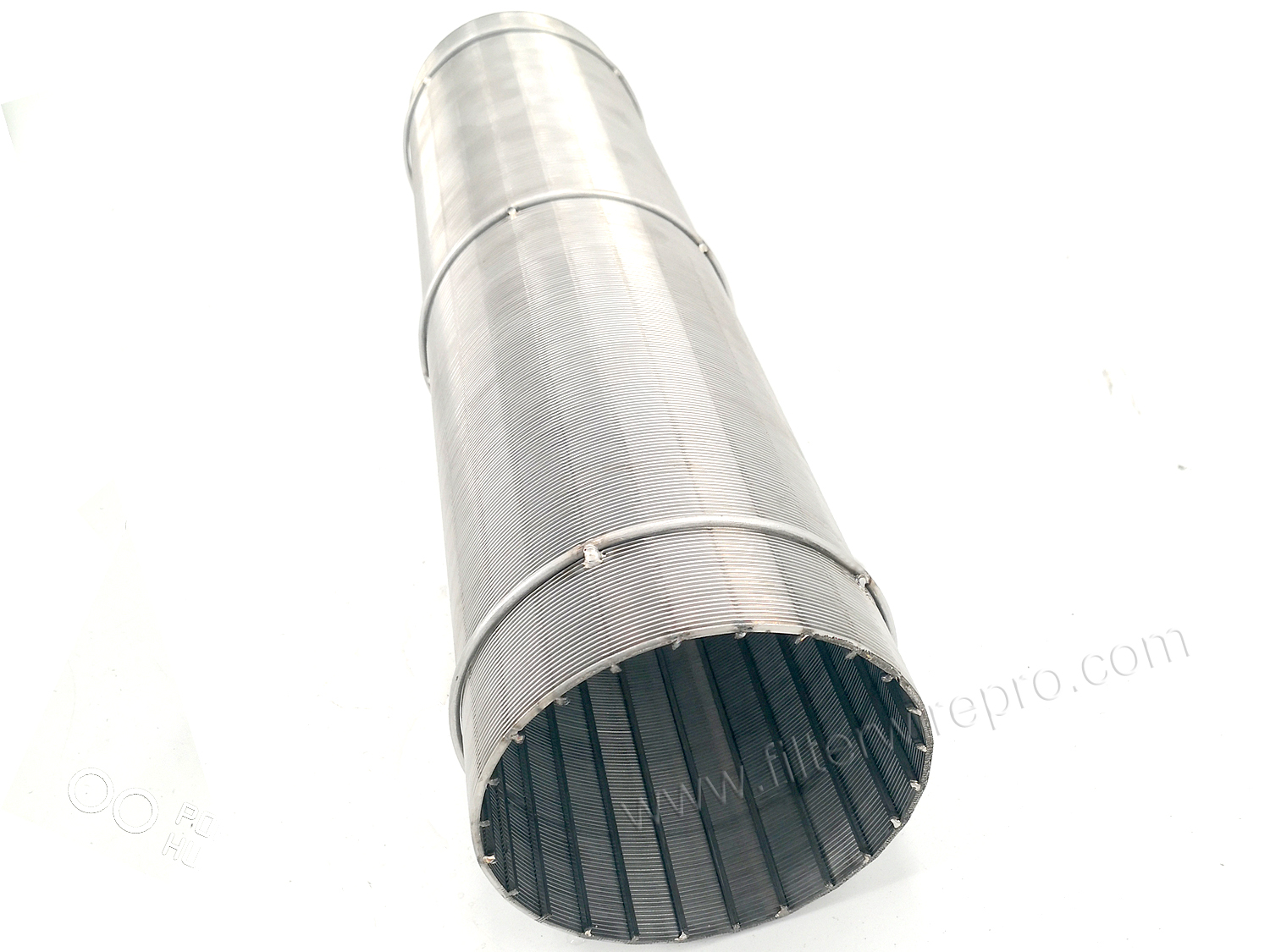

- Non-Clogging V-Wire Surface: Our wedge wire cartridges feature a specialized V-profile wire that creates a “two-point” contact surface. This ensures that particles won’t get trapped in the slots, facilitating easy surface cleaning and consistent flow rates.
- Precision Slot Accuracy: Utilizing CNC-controlled manufacturing, we offer absolute slot precision down to 20 microns. This ensures guaranteed particle retention for sensitive downstream equipment protection.

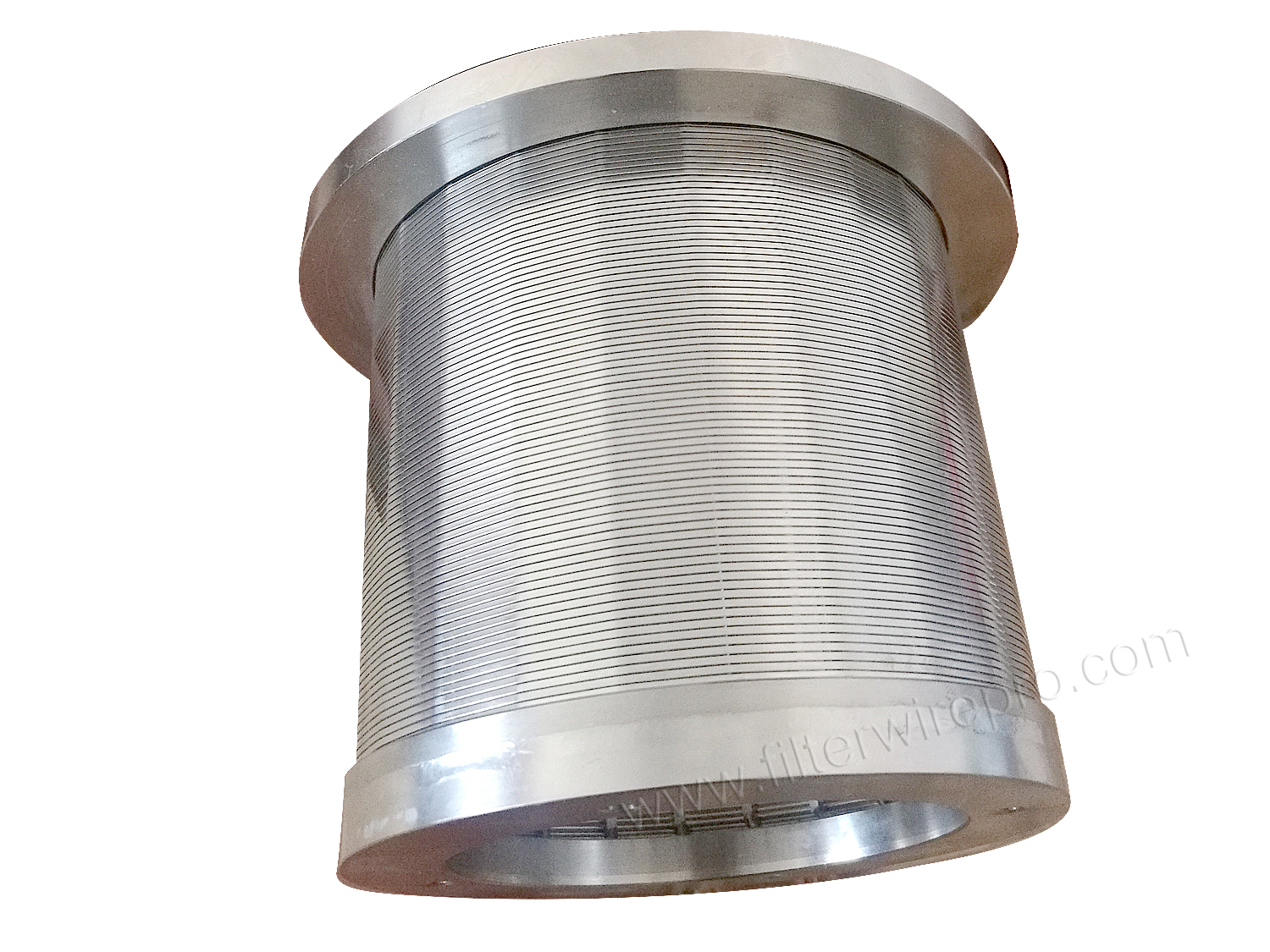

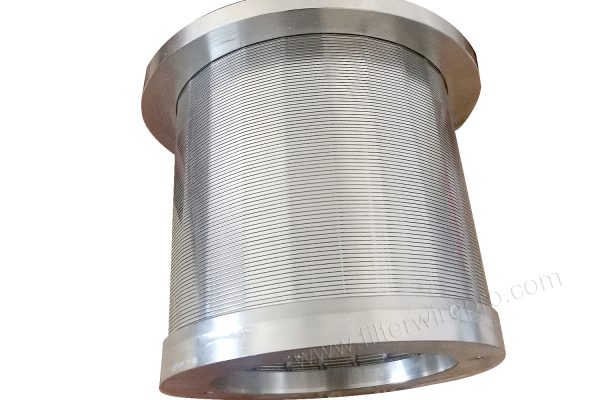

- Customizable End Fittings: We offer a full range of connection types, including heavy-duty handles for easy retrieval (as seen in our oilfield series), threaded NPT/G fittings, flanges, or specialized O-ring seals.
Technical Specifications
Feature | Specifications |
Material Options | SS304, SS316L, Duplex 2205/2507, and specialized alloys |
Slot Sizes | 0.05mm (50 microns) to 5.0mm |
Outer Diameters | Custom fabricated from 25mm to over 1000mm |
Filter Construction | Wedge Wire (V-profile), Perforated Metal, or Multi-layer Sintered Mesh |
Flow Orientation | Out-to-In (Standard) or In-to-Out (FITO) |
Primary Applications
- Oil & Gas: Downhole sand control, debris management (Junk Catchers), and completion fluids.
- Water Treatment: Resin traps, intake screening, and pre-filtration for RO systems.
- Petrochemical: Catalyst recovery and high-temperature gas filtration.
- Food & Beverage: Syrup and liquid sugar clarification, and edible oil polishing.
- Pulp & Paper: Coating filtration and white water recovery.
Custom Fabrication: Built to Your Drawings
At YZ Filter, we specialize in providing “drop-in” replacements for global filter brands or developing custom prototypes for new projects. Whether you need a small-diameter strainer nozzle or a large-scale industrial filter cartridge, our engineering team ensures every weld and slot meets your exact P&ID requirements.
